TD75 general belt conveyor

Time:2016-04-15　Form:Jiangsu Wuyun　Hit:3261

圖片點擊放大
1. Use and scope of application
TD75 general belt conveyor features simple structure, large transport quantity, convenient operation and maintenance, low cost, versatile application and other advantages, and is widely applied to various fields including metallurgy, coal, transport, construction material, mine, harbor, etc. for transport of bulk materials and items packed in sets. The transmission distance and height of this product can be customized, and the maximum dip angle of transmission can reach 22°. The product is capable of long distance transport operation.
This conveyor is applicable to operation environment with temperature around -15℃~40℃. With corresponding protective measures applied, it can also operate under conditions with special requirements, such as explosion-proof, waterproof, corrosion/high temperature/cold resistant.

1.1 Technical features and structure diagram
?Transport capacity of belt conveyor is below 2.5t/m3
?Belt conveyor can be divided into the following categories according to belt width: 500, 650, 800, 1000, 1200, 1400
?Belt conveyor can be divided into the following categories according to belt velocity: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0

/

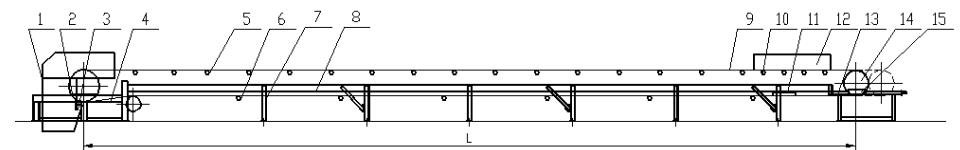

1. Head funnel 2.Head drum 3.Spring cleaner 4.Headstock 5.Carrying idler 6.Return idler 7.Landing leg 8.Middle frame 9.Tape carrier 10.Buffer idler 11.Nonload section cleaner 12. Material-guiding groove 13.Tailstock 14.Tail drum 15.Tension device

1.2 Main technical parameters


Type of carrying idler

Belt velocity

Belt width (mm)

Type of carrying idler

Belt velocity

Belt width (mm)





500

650

800

1000

1200

1400





500

650

800

1000

1200

1400





Conveyor Q (t/h)





Conveyor Q (t/h)

Trough idler





















Parallel idler





















0.8

78

131

―

―

―

―

0.8

41

67

118

―

―

―

1.0

97

164

278

435

655

891

1.0

52

88

147

230

345

469

1.25

122

206

348

544

819

1115

1.25

66

110

184

288

432

588

1.6

156

264

445

696

1048

1427

1.6

84

142

236

368

553

753

2.0

191

323

546

853

1284

1748

2.0

103

174

289

451

677

922

2.5

232

391

661

1033

1556

2118

2.5

125

211

350

546

821

1117

3.15

―

―

824

1233

1858

2528

3.15

―

―

―

―

―

―

4.0

―

―

―

―

2202

2996

4.0

―

―

―

―

―

―
Notes: the transport capacity in the table is calculated when material volume-weight r=1.0t/m3, dip angle of conveyor = 0°~7°, and angle of move of material = 30°.
